Logo slider element

A slider with multiple logos centered on the page.

Item ID: 05-004

Sample views   Step by step guide  Screen adaption

Sample views

Step by step guide

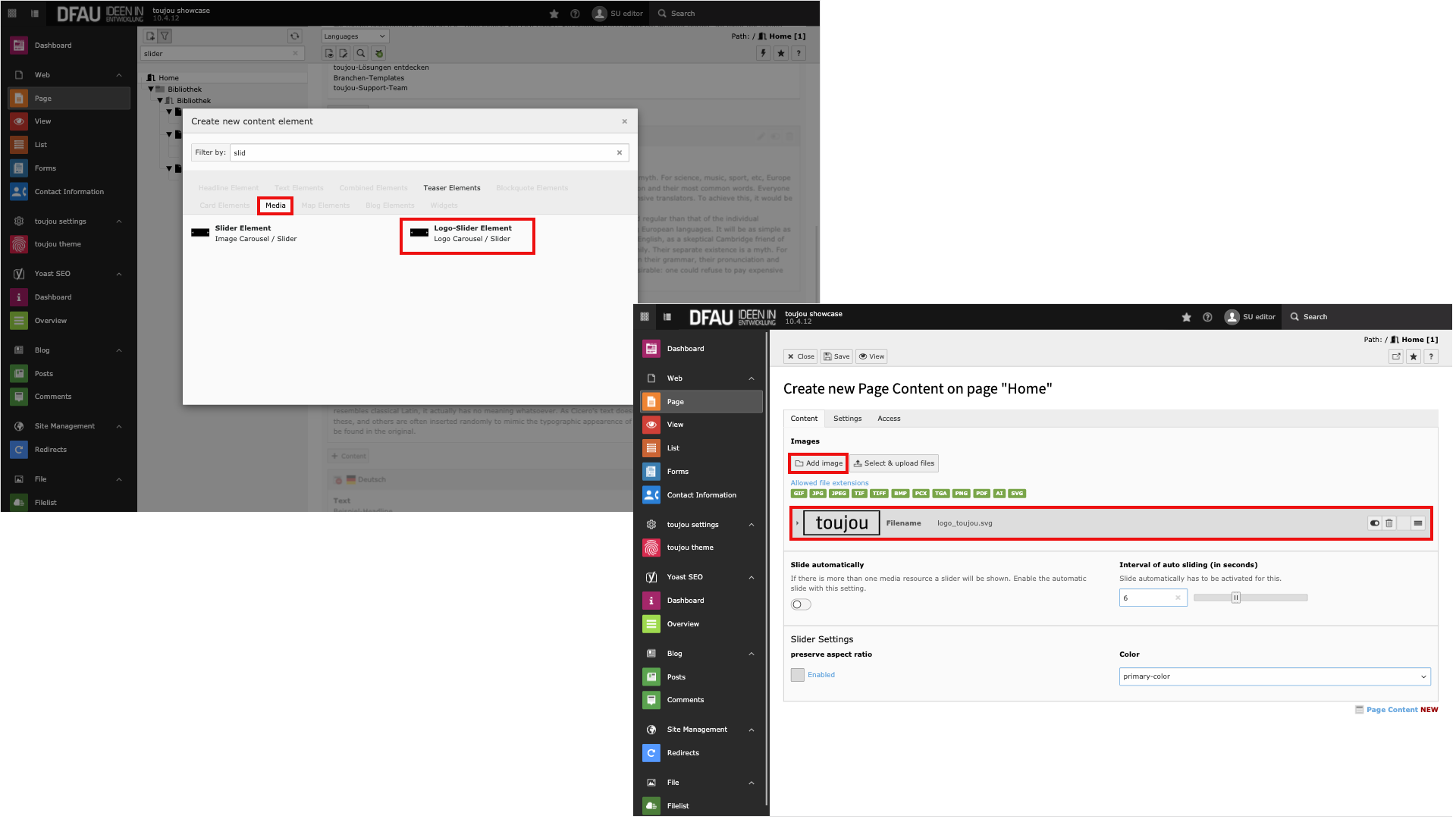

Create an image

  • Click the +Content button and select the Logo Slider element in the Media tab.
  • Choose Add image/Add media file in the Content tab.
  • Select one or several image file(s) from your file list or upload the desired files to the appropriate folder. To activate the slider you should always have uploaded more images then displayed in the Frontend.

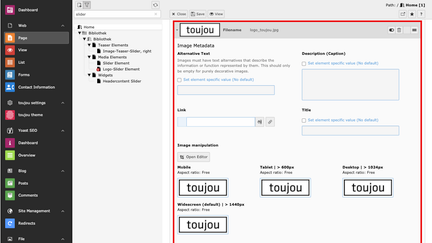

Edit the image

  • A menu for editing the Image Metadata will open under each image that is uploaded.
  • Add a link to the website URLs in the link section for each image/logo, if needed.
  • Check the image section displayed in the preview for the four different display sizes.

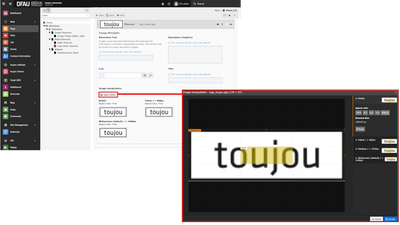

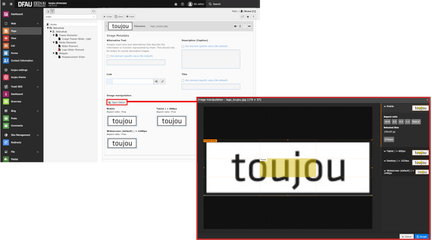

Format the image

  • By clicking the Open Editor button, you can adjust the aspect ratio for the mobile, tablet, desktop, and widescreen view.
  • If necessary, set the image focus for responsive behavior to the desired image area in each case.

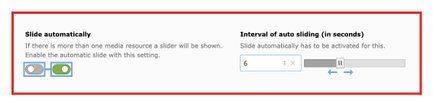

Automatic replay of media

If you use more than one media source within the same element, you have the option to have automatic replay. To ensure a fluid playback, all media is played using the same format (16:9).

  • Slide automatically: Activate the slider by clicking on ito set up the automatic replay.
  • Interval of auto slidings (in seconds)The default speed for images is every 6 seconds. If you would like to change this frequency, move the slider accordingly on a scale from 1 to 15 seconds (this will only work if the slide automatically is activated).

Screen adaption

The Logo Slider element enables you to display multiple images in a gallery loop. Make sure the aspect ratio of the images selected is similar and avoid mixing portrait and landscape formats.

The slider is only working properly, when more images are stored than are displayed in the frontend. For different devices there are different numbers, e.g. for desktop it works with 5 images, for smartphones 3 images are enough.

Responsive: The logo slider element is displayed at a fixed ratio for all available screen sizes.

Linked topics

Explanations from toujou & TYPO3 setup related to this element guide.
